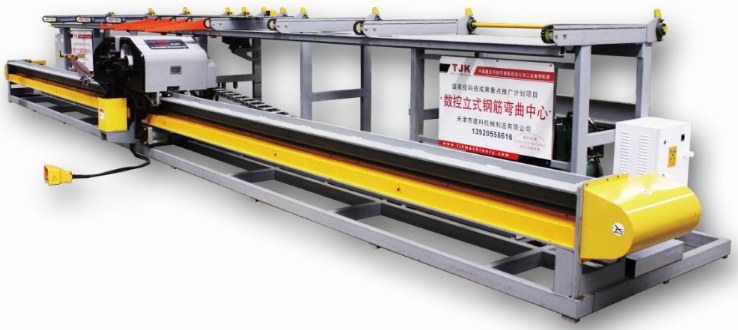

Rebar Bending Line G2L25X (10-25 mm)

Rebar Bending Line G2L25/G2L32E-2(bar bender machine) is precisely working with angle,maximum diameter for bending is 60mm;
CONTACT NOW
Rebar Bending Line G2L25X (10-25 mm) VIDEO
Features Related Products More Detail

Features of Rebar Bending Line G2L25X (10-25 mm)

  • 1
    Rebar Bending Line G2L25/G2L32E-2(bar benders) has advanced technology is introduced from Europe, lots of parts have patent for invention, the high efficiency also high endurance and humane designings are safe and reliable;
  • 2
    High precision of PLC control, it is powerful database inside,no need manual adjustment;
  • 3
    Rebar Bending Line G2L25/G2L32E-2(bar bender machine) is precisely working with angle, maximum diameter for bending is 60mm;
  • 4
    Rebars can be bent by double-shaft, workable of direction from forward and reverse; More than one rebars can be bent at the same time,bending range 0°-180°; the service life and efficiency are greatly improved by the bending units which made by special materials;the workers safety are ensured by the covering of the machine(bar benders);
  • 5
    TJK Rebar Bending Line G2L25/G2L32E-2(bar benders)  have been sold more than 300 pcs around the world.

Related Products Rebar Bending Line G2L25X (10-25 mm)


  • Rebar Bending Line G2L25X (10-25 mm)
    Rebar Bending Line G2L25/G2L32E-2(bar bender machine) is precisely working with angle,maximum diameter for bending is 60mm; Rebar Bending Line G2L25X (10-25 mm)
  • Rebar Bending Line G2W50 (10-50 mm)
    Technical Data: Overall Diameter:12500 2200X1020(mm) Bending Speed:9r p m Bender Moving Speed:0 5~ 1m s Power Supply:380V 50H Rebar Bending Line G2W50 (10-50 mm)
  • Rebar Bending Line G2L32E-2 (10-32 mm)
    Rebar Bending Line G2L25 G2L32E-2(bar benders) has advanced technology is introduced from Europe,lots of parts have patent for invention,the high efficiency also high endurance and humane designings are safe and reliable Rebar Bending Line G2L32E-2 (10-32 mm)

More Detail Rebar Bending Line G2L25X (10-25 mm)

Characteristics of Rebar Bending Line G2L25X


  • Rebar Bending Line G2L25/G2L32E-2(bar benders) has advanced technology is introduced from Europe, lots of parts have patent for invention, the high efficiency also high endurance and humane designings are safe and reliable;
  • High precision of PLC control, it is powerful database inside, no need manual adjustment;
  • Rebar Bending machine Line G2L25/G2L32E-2(bar bender machine) is precisely working with angle, maximum diameter for bending is 60mm;
  • Rebars can be bent by double-shaft, workable of direction from forward and reverse;
  • More than one rebars can be bent at the same time,bending range 0°-180°;
  • The service life and efficiency are greatly improved by the bending units which made by special materials; the workers' safety is ensured by the covering of the machine(bar benders) ;
  • TJK CNC Rebar Bender G2L25/G2L32E-2(bar benders)  have been sold more than 300 pcs around the world


Technical Data of Rebar Bending Line G2L25X


TECHNICIAL DATAModel

G2L25

G2L32E-2

Bending capacity

Clockwise and Anti-clockwise:Φ10 – Φ20

[mm]

Single direction: Φ10 – Φ32 [mm]

Clockwise and Anti-clockwise: Φ10 – Φ25

[mm]

Single direction: Φ10 – Φ32 [mm]

Max. bending angle

clockwise: 120°

anti-clockwise: 180°

clockwise: 120°

anti-clockwise: 180°

Max. bendingside length

10 [m]

10 [m]

Min. bendingside length

Φ10mm   450mm

700 [mm]

Φ25mm 500mm

Min. bending hook length

70 [mm]

80 [mm]

Bender move speed

0.5 – 1 [m/s]

0.5 – 1 [m/s]

Bending speed

0~9r.p.m

≥ 0.6 [Mpa]

Air operational pressure

≥ 0.6 [Mpa]

14 [KW]

Installed power

8 [KW]

6 [KW/h]

Average power consumption

4 [KW/h]

5,500 [KG]

Overall diameter

11500X2100X1350 [mm]

11700 × 2130 × 1600 [mm]

Bars diameter

(max tensile strength 750Mpa)

Φ

10

Φ12

Φ14

Φ16

Φ20

Φ22

Φ25

Φ10

Φ

12

Φ14

Φ16

Φ20

Φ22

Φ25

Φ28

Φ32

Bending bars no°

6

5

4

3

2

1

1

4

4

4

3

3

1

1

1

1
